Fiting Malzemeleri

Özer Paslanmaz

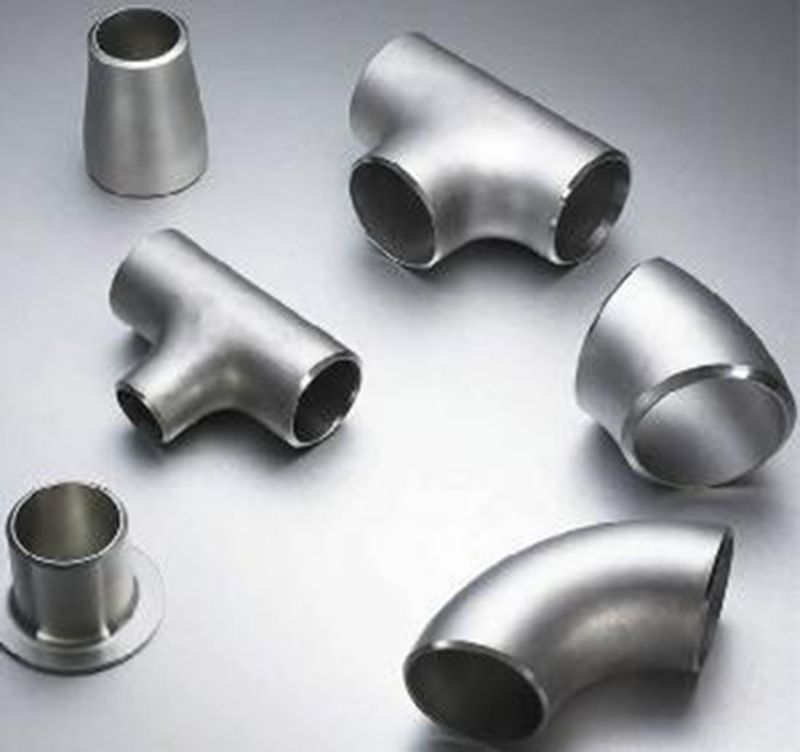

PASLANMAZ DİRSEK ÖLÇÜLERİ
304 Mat Diresek	316 Mat Dirsek	304 Polisajlı
13x1,5	17x1,50	15x1,5
17x1,5	21x2,0	21x1,50
17x2,0	25x2,0	25x1,5
18x1,5	27x2,0	27x1,5
21x2,0	27x3,0	30x1,5
21x3,0	28x2,0	32x1,5
25x2,0	30x2,0	33,7x1,5
27x2,0	32x1,5	38x1,5
27x3,0	32x2,0	40x1,5
28x2,0	33x2,0	42x1,5
30x2,0	33x3,0	48x1,5
32x2,0	38x2,0	51x1,5
33x2,0	40x2,0	60x1,5
33x3,0	42x2,0	60x2,0
35x2,0	42x3,0	63,5x1,5
38x1,5	45x2,0	70x1,5
38x2,0	48x2,0	76x1,5
40x2,0	48x3,0	89x1,5
42x1,5	51x2,0	89x2,0
42x2,0	60x2,0	114x2,0
42x3,0	60x3,0	139x2,0
45x2,0	76x2,0	168x3,0
48x2,0	76x3,0
48x3,0	89x2,0
51x2,0	89x3,0
54x2,0	101x2,0
57x2,0	101x3,0
60x2,0	114x2,0
60x3,0	114x3,0
63,5x1,5	129x3,0
70x2,0	139x3,0
76x2,0	154x3,0
76x3,0	168x2,0
80x2,0	168x3,0
84x2,0	219x2,0
85x2,0	219x3,0
89x2,0	273x3,0
89x3,0	323x3,0
101x2,0	355x3,0
101x3,0
104x2,0
114x2,0
114x3,0
129x2,0

PASLANMAZ REKOR ÖLÇÜLERİ
INCH	L MM	D MM	W MM
1/4"	34	28	12
3/8"	38	34,5	14
1/2"	40	39	15
3/4"	48,5	46	15
1"	49,5	55	17
1-1/4"	54	63,2	20
1-1/2"	56	71	20
2"	59	86	22
2-1/2"	69,5	106	23,5
3"	81,5	124	27

PASLANMAZ MANŞON ÖLÇÜLERİ
ÖLÇÜ	1/8"mm	1/4"mm	3/8"mm	1/2"mm	3/4"mm	1"mm	1 1/4"mm	1 1/2"mm	2"mm	2 1/2"mm	3"mm	4"mm
L	20	25	25	33	35	42	47	47	56	65	70	80
W	14	18,5	18,5	26	32	39	48	54	66,5	82	95	122

Firmamız Paslanmaz Sac, Paslanmaz Boru, Paslanmaz Kutu Profil, Paslanmaz Dikdirtgen Profil, Paslanmaz Çubuk, Paslanmaz Lama, Paslanmaz Çelik Köşebent, Paslanmaz Kare, Paslanmaz Altıköşe, Fiting Malzemeler yelpazesinde sizin değerli ihtiyaçlarınıza cevap verebilmektedir.
